Features:
Working temperature: -20-60 ℃
Supply Power: DC12~24V
Net Weight:185g
Output: Three CMOS drain- open output
Connecting Mode: Common anode
Max load current: 4 A each color
Output power: 12V:≤144W, 24V: ≤288W

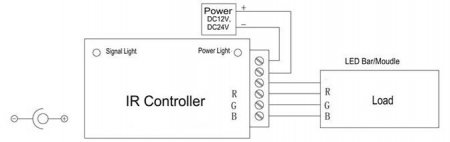

Wiring Instructions:
Change the pattern choice list Adopt IR remoter to control the led controller ,which has 24 buttons, the function of each button as the table below:
Brightness +（Speed up） | Brightness –(Speed down) | Off | On |
Static red | Static green | Static blue | Static white |
Static orange | Static pea green | Static dark blue | 7 color jumpy change |
Static dark yellow | Static cyan | Static brown | All fade out&fade in |
Static yellow | Static light blue | Static pink | 7 color fade change |
Static straw yellow | Static sky blue | Static purple | 3 base color jumpy |
Note:
1. Supply voltage of this product is DC12V~24V; never connect to AC220V.
2. Never connect two wires directly in case of short circuit.
3. Lead wire should be connected correctly according to colors that connecting diagram offers.
4. Warranty of this product is one year, in this period we guarantee replacement or repairing with no charge, but exclude the artificial situation of damaged or overload working.
Package includes:
1pcs IR Remote Controller (Not contain the battery, Battery P/N. : CR2025 )
1pcs Adapter(Aluminum Case)
a user manual
